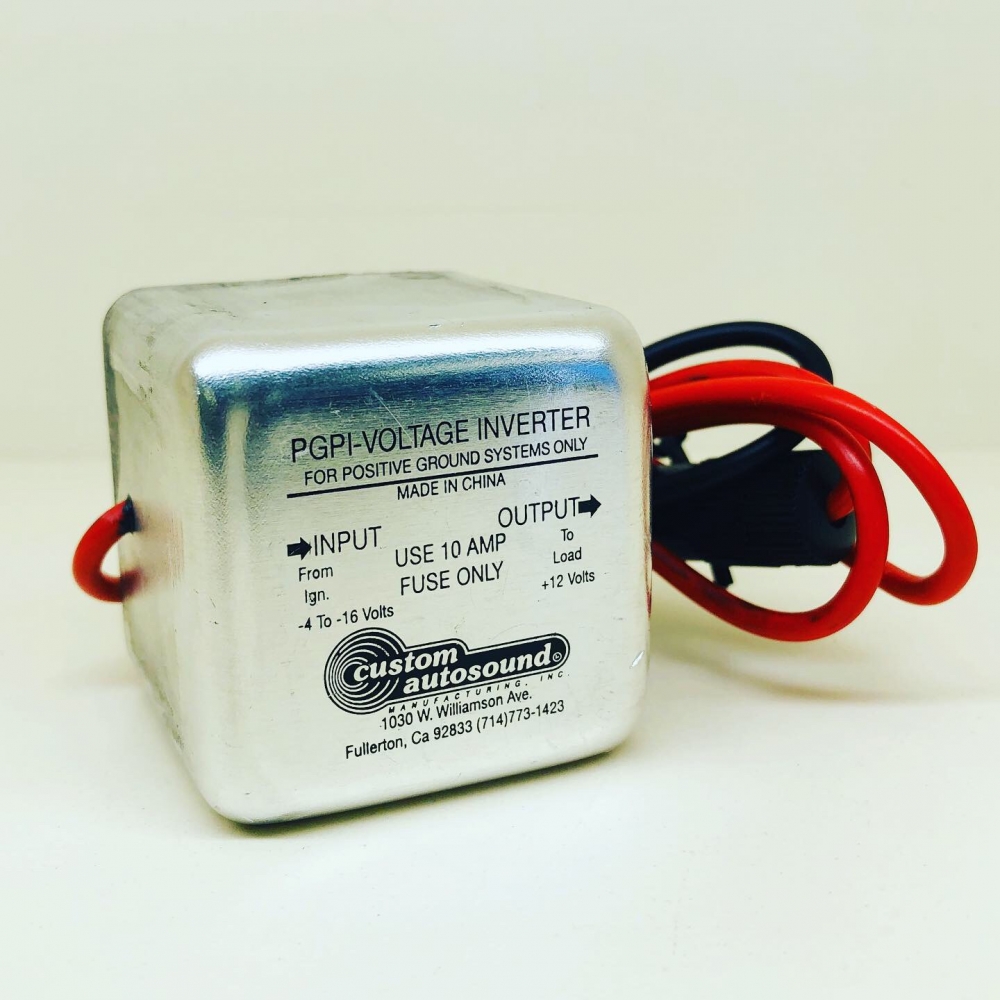

VOLTAGE INVERTER

If you're classic car has a positive-ground chassis this is the ideal problem solver to enable you to run negative ground accessories.

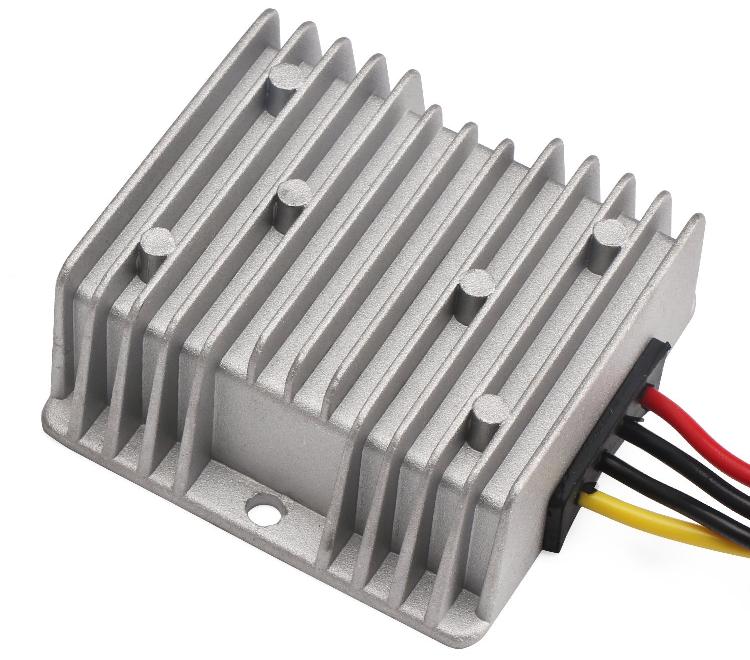

Operate modern 12 volt negative ground accessories from positive ground 12 volt electrical systems! These Power Inverters are very small (78 x 74 x 32 mm approx.), lightweight (only about 245g approx.), quiet and extremely efficient. They use a common ground, so isolation is not necessary.


Current draw is negligible when no load is applied (quiescent current is about 10 milliamps), so they are ideal for memory maintenance or alarm systems that must be left on for long periods of time without discharging the vehicle battery. Overload and Reverse Polarity protected for long reliable life.


Not Recommended For: Power actuated door locks, boot / trunk release solenoids, air conditioner clutches, fans, blowers, power windows or other electromechanical devices.

Features and Specifications:

• Input Voltage: -9V to -18V DC
• Output Voltage: 12V DC nominal
• Output Current: 10A
• Output Current: 12A maximum
• Conversion Efficiency: more than 95%
• Temperature Range: -40°C to +85°C
• Dimensions: 78 x 74 x 32 (mm)
• Protection: input transient high voltage protection, output over current protection, chip overheating protection
• Applications: car alarms, radios, CB and UHF radios, audio systems, navigation, monitoring, vehicle mounted LED display screens, solar energy, LED lights and more.

Additional Information:

• Measure correct output voltage prior to connection of intended device.
• The device must be fused on both the input and the output.
• PROFESSIONAL INSTALLATION RECOMMENDED!
