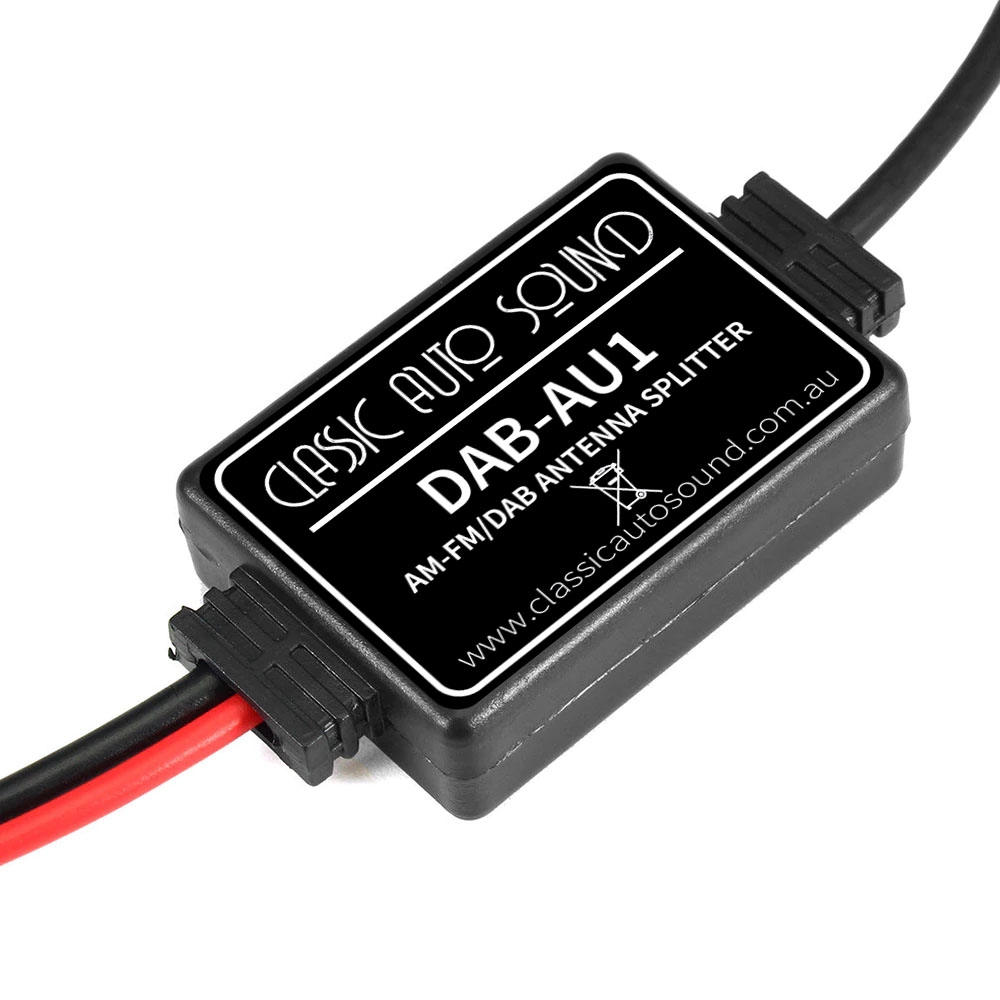

AMPLIFIED AM/FM TO DAB ANTENNA ADAPTER SPLITTER

ANTENNA ACCESSORIES
$52.50
This adapter allows you to turn a standard AM/FM antenna into an antenna that will receive both AM/FM stations and Digital Audio Broadcast (DAB/DAB+) stations. It has a DAB output that plugs into the DAB input on the radio, as well as a standard output.
SKU: DAB-AU1
  • Overview

AMPLIFIED AM/FM TO DAB ANTENNA ADAPTER SPLITTER


This adapter allows you to turn a standard AM/FM antenna into an antenna that will receive both AM/FM stations and Digital Audio Broadcast (DAB/DAB+) stations. It has a DAB antenna output that plugs into the DAB input on the radio, as well as a standard antenna output for AM/FM stations.

FEATURES:

  • For use with all Classic Auto Sound DAB Capable Radios
  • Converts existing FM/AM aerials so that they can be used with DAB radios
  • DAB/DAB+/DMB-A compatible
  • Uses existing FM/AM aerial
  • Retains original appearance of vehicle
  • Small, neat and hidden



PRODUCT SPECIFICATIONS:

  • Amplifier Frequency Range:
    ~DAB:174~240MHz
    ~ AM:520~1710KHz
    ~ FM:87.8~108MHz
  • Working Voltage: 9.0v~16.0v
  • Working Current: 30mA~60mA
  • Gain:
    ~ DAB:18±2dB
    ~ AM/FM:-2±2dB
  • Impendance: 50Ω
  • V.S.W.R:<3.0:1
  • Connector Style:Car Antenna Plug & Socket  SMB
  • Fuse:500mA
  • PCB:FR4
  • Plastic Housing:ABS
